Modena

Two-tone exterior view

Conservatory with differently inclined gable roof halves on a residential building with floor-to-cover wooden formwork. The large roof area takes up the slope of the roof of the house. The blue of the dormer beams was also adopted over the window and door elements.

With these two "tricks" and the clever choice of the exterior color, the subsequently added winter garden looks like it was planned from the beginning and integrates wonderfully into the existing building.



Project details

Object number 20
Location 35274 Kirchhain
Line Modena
Dimensions
Base area approx .: 4.30 x 3.30 m
Design
Offset gable roof
Wooden profile Classic
Wood painting Pasture
Aluminum profile Semicircular
Aluminum coating Marble gray and marble blue
Glazing
Thermal protection glass with warm edge. All panes also come as self-cleaning Bioclean glass.
Shading
Two external roof shading systems and partly internal folding blinds as privacy screens.


Ventilation

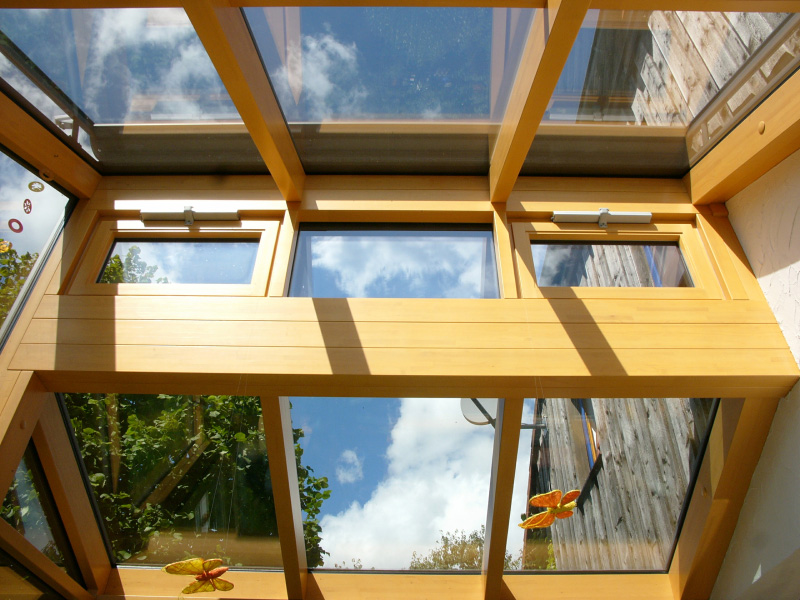

Manually via two deep motor-operated supply air windows and two high motor-operated exhaust air windows in the skylight between the two differently inclined roof surfaces.
Control
6-channel control
Special equipment
Self-cleaning Bioclean glass insect protection frame
