Novara

Flat roof Conservatory with hipped roof glass dome, in the cubic Bauhaus style

Exclusive living space extension as a modern flat roof winter garden with hipped roof glass dome.

The property was created on the upper floor on a living space extension in the entrance area on the ground floor, as an elegant extension with a view of the beautiful garden.

The filigree mullion-transom construction is painted opal white on the inside and powder-coated in marble gray on the outside. In the corners again our slim stainless steel supports behind the all-glass corner. A very typical Steinbach detail in flat roof winter gardens in the Bauhaus style.

The flat roof ceiling merges seamlessly into the facade glass and the base bar was also made barrier-free.

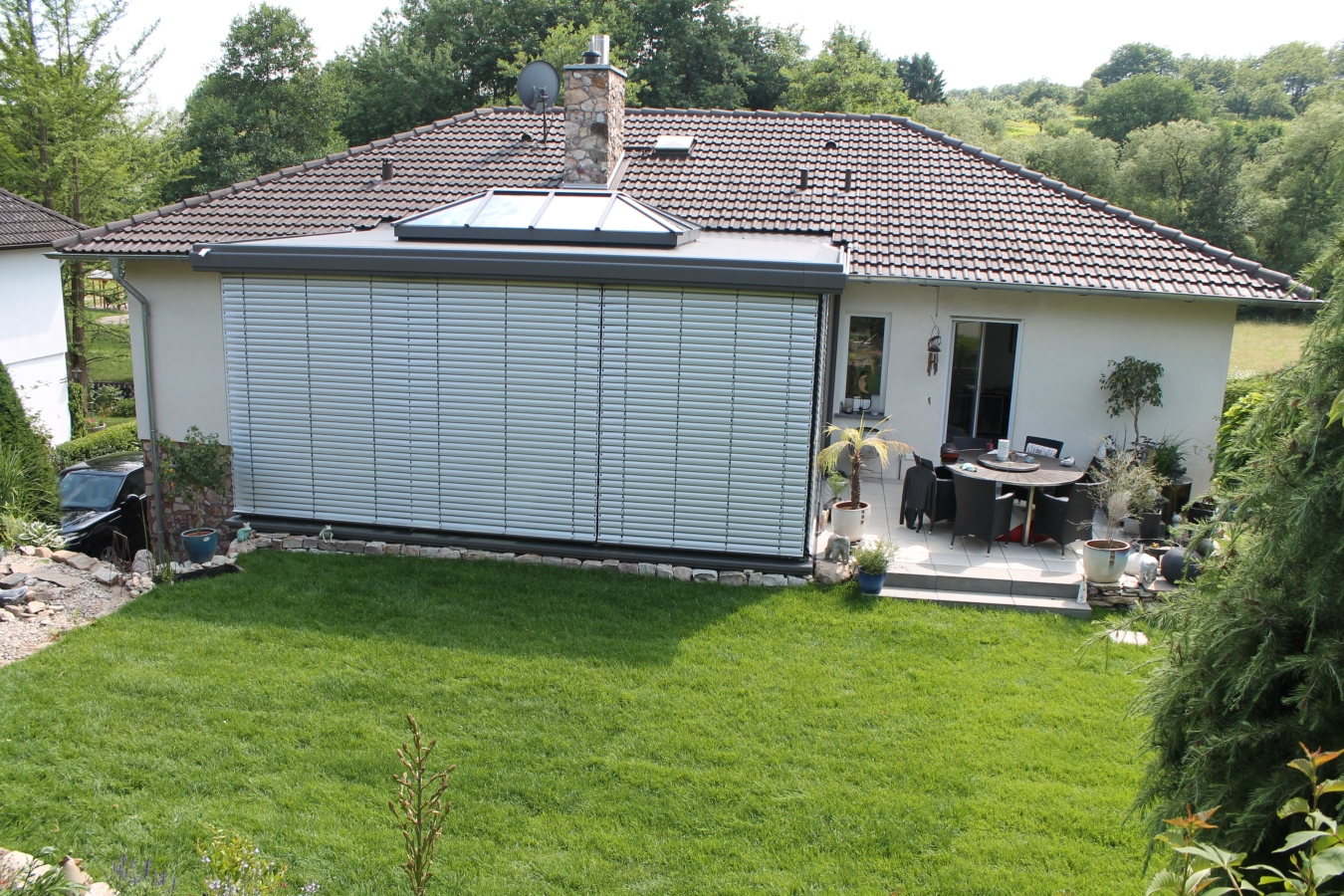

The closed, very well insulated, flat roof is opened in the middle with a hipped roof glass dome. The dome is glazed with special triple sun protection glass with cleaning support.

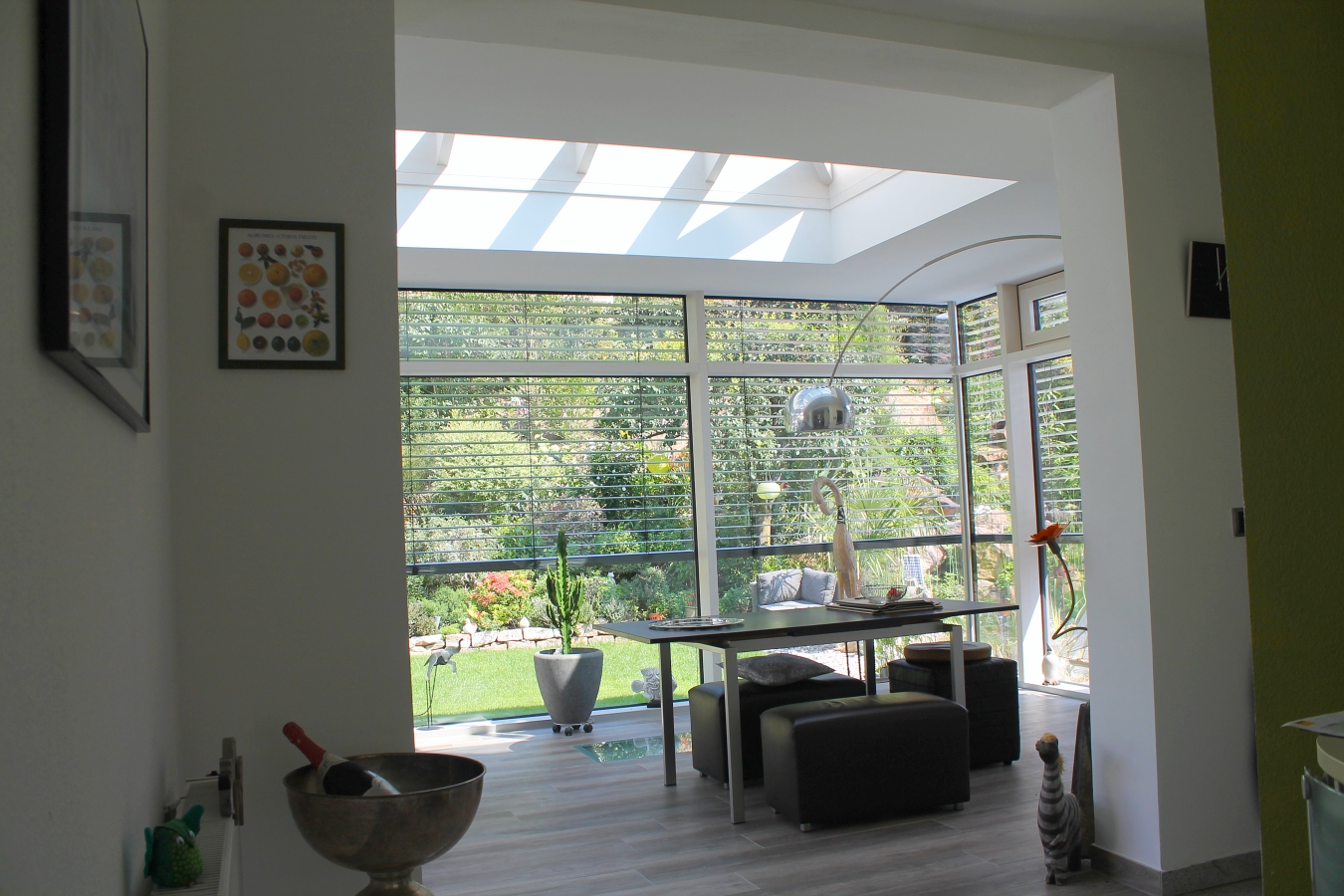

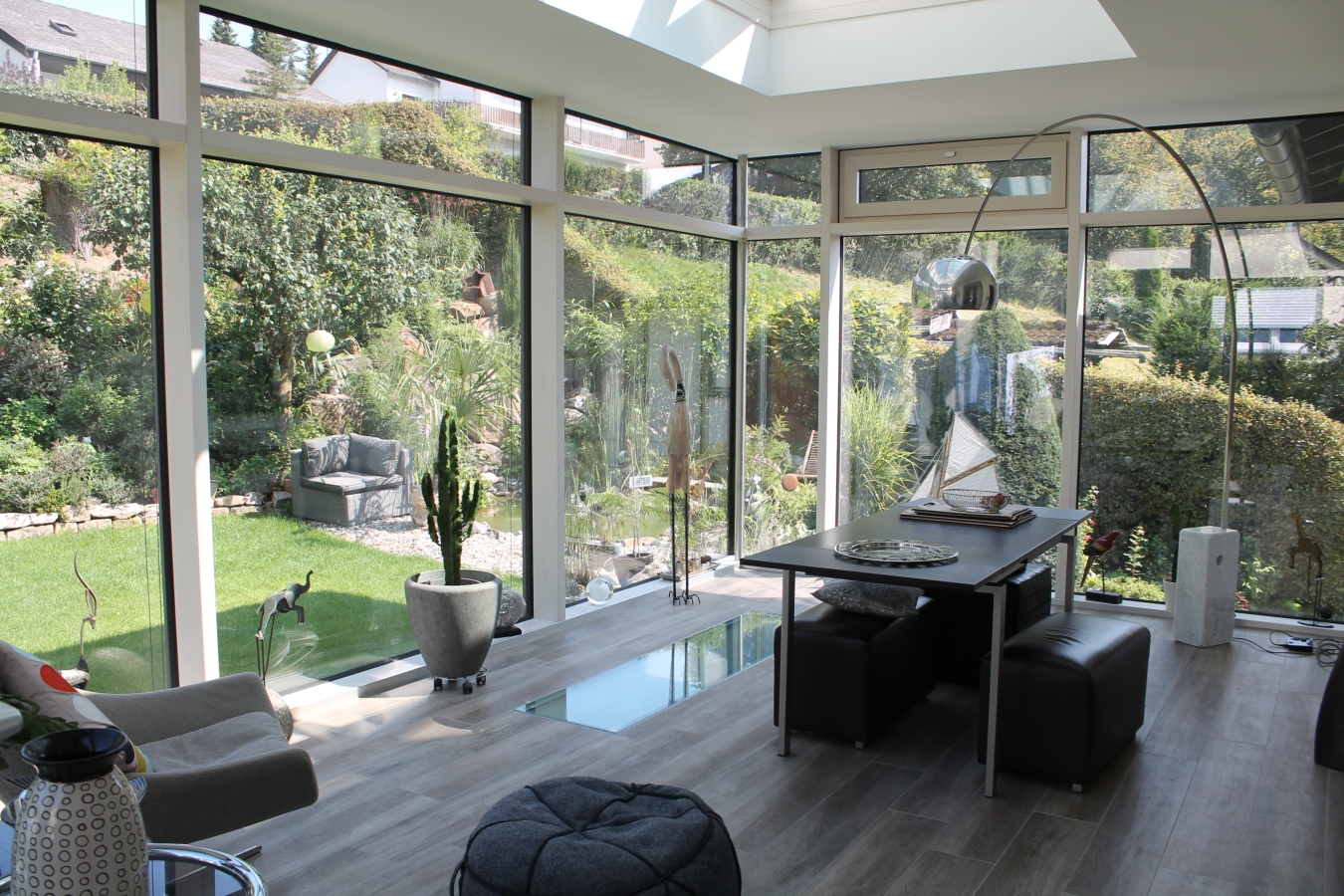

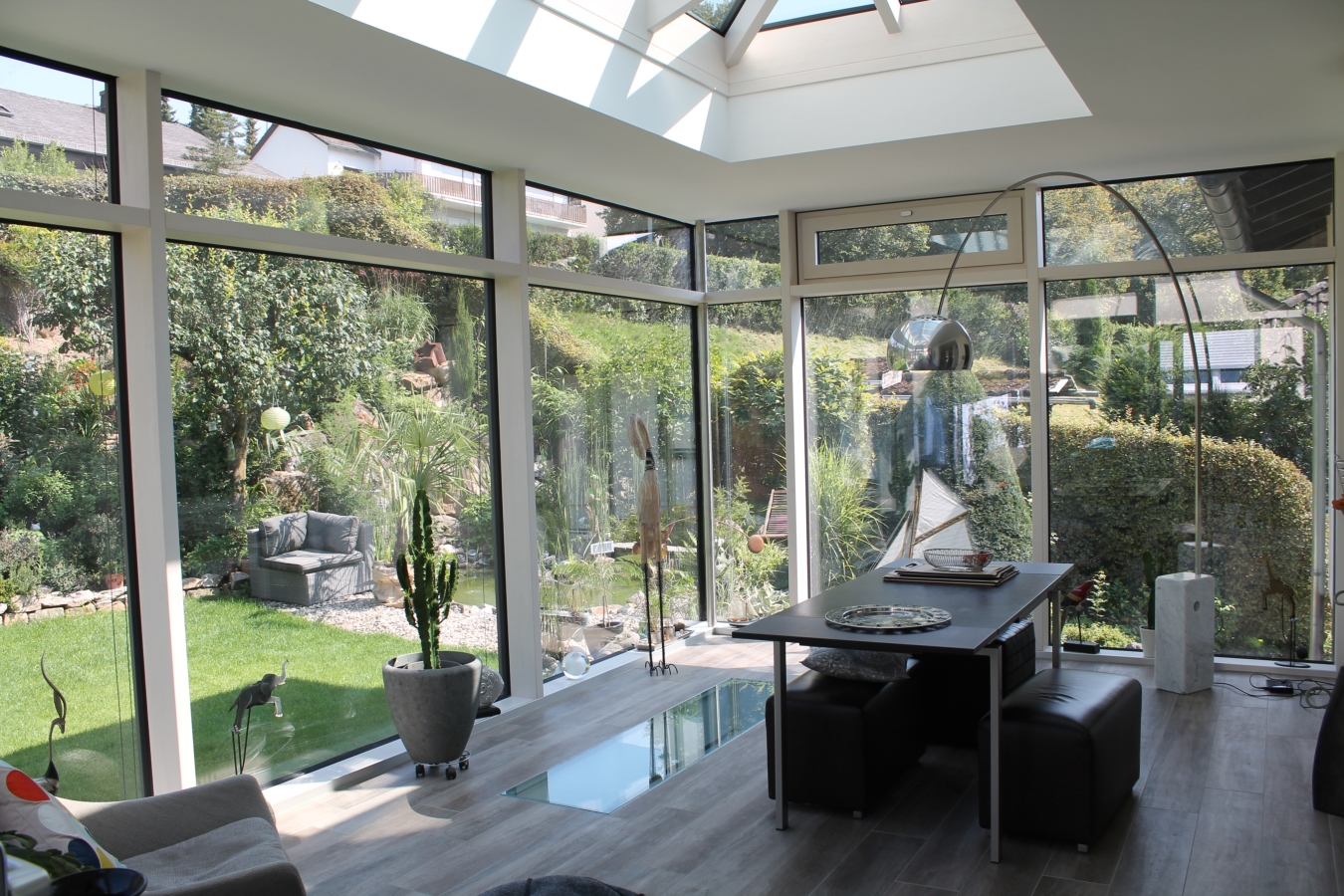

You can see very well how bright these winter garden extensions are inside. If you compare them with classic winter gardens with an all-glass roof, which must be shaded on many days, these flat roof objects are actually lighter, with a much more pleasant climate at the same time, since a large part of the roof is still closed and extremely well insulated!



Project details

Object number 24
Location 65207 Wiesbaden
Line
NOVARA in Bauhaus style, with a glass dome. Emphasis on the vertical.
Dimensions
Base area approx .: 6.10 x 3.80 m
Design
Flat roof with dome
Wooden profile Classic
Wood painting Opal white
Aluminum profile Semicircular
Aluminum coating Marble pigeon blue
Glazing
Triple energy saving glass with warm edge



Ventilation
Two tilting skylights with concealed motor drive and a sliding door.
Special equipment
All-round facade shading. Conservatory control in energy column.
Particularities
Very demanding connection to the house roof.
